ESCORE Media is plastic media installed in water treatment system. It can be used with aerobic and anaerobic system, and it acts like a home for microbes. The microbes will adhere tosurface of the plastic media. When wastewater flows through the plastic media, the microbes will decompose dirt in that water, and the treated water will have better quality. It also enhances efficiency of treatment system as it separates water entering treatment system and prevents the microbes in the system from contaminating the treated water.

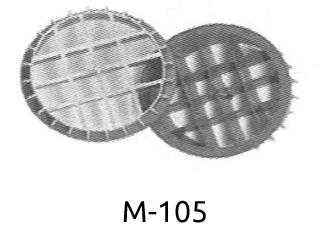

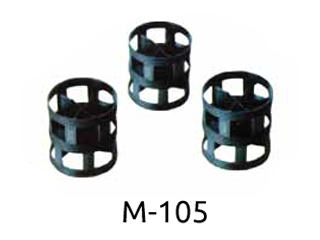

| Model | M-110 | M-120 | M-150 | M-240 | M-105 | M-190 |
|---|---|---|---|---|---|---|
| Type | Cross Flow Configuration |
Cross Flow Configuration |
Cross Flow Configuration |
Cross Flow Configuration |
Random Flow Configuration |
Random Flow Configuration |
| Material | Rigid Polyvinyl Chloride |
Rigid Polyvinyl Chloride |
Rigid Polyvinyl Chloride |
Rigid Polyvinyl Chloride |
Nylon, PE | Polyethylene |
| Size (W×L×H) | 0.45m×1.00m ×0.53m |
0.45m×1.00m ×0.53m |
0.45m×1.00m ×0.53m |
0.45m×1.00m ×0.53m |
Diameter: 90 mm. Hight: 90 mm. |
Diameter: 70 mm. Hight: 22 mm. |
| Specific Surface | 110 m2/m3 of media |
120 m2/m3 of media |
157 m2/m3 of media |
240 m2/m3 of media |
105m2/m3 of media |
190 m2/m3 of media |
| Void ratio | 97% | 97% | 97% | 95% | 95% | 90% |
